🔌 Installing and configuring NUT (Network UPS Tools) for your home lab

📆 2025-06-28 13:20

Do you have an UPS ? And a home lab? Awesome. This post is about configuring all your servers, raspberry pi's and even your gaming PC to shutdown gracefully in the event of a power outage.

The thing is that you can plug in the power cord for multiple devices in your UPS but, usually, an UPS comes with 1 data cable and, wait for it, a Windows application. With the USB data cable the UPS communicates with only one computer.

To connect all your computers/servers to the UPS you are going to install Nut. Also known as Network UPS Tools.

What is Nut

It's an open UPS networking monitoring tool that runs on many different operating systems.

This means you can run the server on Linux, MacOS, or BSD and run the client on Windows, MacOS and Linux. It works well for your Raspberry Pi, server, or desktop.

It works with a lot of UPS devices, PDUs and many other power management systems.

Visit Network UPS Tools website

Setting up the hardware

It's easy. Plug your UPS into an power outlet, plug all your devices power cords into the UPS, connect it's data cable to the server or whatever device you know you'll choose to shutdown last. SSH into it and

Install Nut Server and Nut Client

I have an Ace Magician Tiny PC which is also the cluster leader. I chose this one to be the leader and the last pc to shutdown in case of a power outage because it draws the smallest amount of power. So I connected the UPS to it. This tiny pc will have both the NUT server and NUT client installed on it.

Locate UPS and setup driver

lsusb

make sure the UPS is shown:

sava@tiny:~$ lsusb
Bus 001 Device 003: ID 051d:0002 American Power Conversion Uninterruptible Power Supply

If your UPS shows up you can

sudo apt update
sudo apt install nut nut-client nut-server

Use nut-scanner to scan for the UPS

sudo nut-scanner -U

You should get something like:

[nutdev1]
        driver = "usbhid-ups"
        port = "auto"
        vendorid = "051D"
        productid = "0002"
        product = "Back-UPS ES 700G FW:871.O3 .I USB FW:O3"
        serial = "5B**********"
        vendor = "APC"
        bus = "001"
        device = "003"
        busport = "002"
        ###NOTMATCHED-YET###bcdDevice = "0106"

Copy vendorit and productid as it's needed in the next step.

Configure Nut Server and Client on the connected PC with USB cable

sudo pico /etc/nut/nut.conf

MODE=netserver

sudo pico /etc/nut/ups.conf

maxretry = 3
# Name your UPS in the [] below
#this name has to be present also in /etc/nut/upsmon.conf
#MONITOR apc@localhost 1 admin securepass master
[apc]
        driver = usbhid-ups
        port = auto
        desc = "APC UPS"
        ### Your vendorid and productid
        vendorid = 051d
        productid = 0002
        ###
        serial = 5B15********

sudo pico /etc/nut/upsd.conf

LISTEN 0.0.0.0 3493
# Listens on port 3493 on all interfaces

sudo pico /etc/nut/upsd.users

[admin]
        password = securepass
        actions = SET FSD
        instcmds = ALL
        upsmon master
[monitor]
        password = securepass
        upsmon slave
# First user - admin - can issue commands to the UPS
# Seconds user - monitor - can only read data from the UPS

sudo pico /etc/nut/upsmon.conf

RUN_AS_USER root

MONITOR apc@localhost 1 admin securepass master

MINSUPPLIES 1
SHUTDOWNCMD "/sbin/shutdown -h"
NOTIFYCMD /usr/sbin/upssched
POLLFREQ 2
POLLFREQALERT 1
HOSTSYNC 15
DEADTIME 15
POWERDOWNFLAG /etc/killpower

NOTIFYMSG ONLINE    "UPS %s on line power"
NOTIFYMSG ONBATT    "UPS %s on battery"
NOTIFYMSG LOWBATT   "UPS %s battery is low"
NOTIFYMSG FSD       "UPS %s: forced shutdown in progress"
NOTIFYMSG COMMOK    "Communications with UPS %s established"
NOTIFYMSG COMMBAD   "Communications with UPS %s lost"
NOTIFYMSG SHUTDOWN  "Auto logout and shutdown proceeding"
NOTIFYMSG REPLBATT  "UPS %s battery needs to be replaced"
NOTIFYMSG NOCOMM    "UPS %s is unavailable"
NOTIFYMSG NOPARENT  "upsmon parent process died - shutdown impossible"

NOTIFYFLAG ONLINE   SYSLOG+WALL+EXEC
NOTIFYFLAG ONBATT   SYSLOG+WALL+EXEC
NOTIFYFLAG LOWBATT  SYSLOG+WALL+EXEC
NOTIFYFLAG FSD      SYSLOG+WALL+EXEC
NOTIFYFLAG COMMOK   SYSLOG+WALL+EXEC
NOTIFYFLAG COMMBAD  SYSLOG+WALL+EXEC
NOTIFYFLAG SHUTDOWN SYSLOG+WALL+EXEC
NOTIFYFLAG REPLBATT SYSLOG+WALL
NOTIFYFLAG NOCOMM   SYSLOG+WALL+EXEC
NOTIFYFLAG NOPARENT SYSLOG+WALL

RBWARNTIME 43200

NOCOMMWARNTIME 600

FINALDELAY 5

sudo pico /etc/nut/upssched.conf

CMDSCRIPT /bin/upssched-cmd
PIPEFN /etc/nut/upss/upssched.pipe
LOCKFN /etc/nut/upss/upssched.lock

# Send alerts immediately on change in line power
AT ONBATT * EXECUTE onbatt
AT ONLINE * EXECUTE onpower

# Silence the UPS beeper after 1 minutes
AT ONBATT * START-TIMER mute_beeper 60
AT ONLINE * CANCEL-TIMER mute_beeper

# Shutdown after 20 seconds if battery is critical
AT LOWBATT * START-TIMER critical_shutdown 20

# Cancel shutdown timer if power's restored
AT ONLINE * CANCEL-TIMER critical_shutdown

# Starts a timer on communication failure with the UPS
AT COMMBAD * START-TIMER commbad_timer 120
# Cancels the communication failure timer when communication is restored
AT COMMOK * CANCEL-TIMER commbad_timer
# Executes shutdown on persistent communication failure
AT NOCOMM * EXECUTE commbad_shutdown

AT SHUTDOWN * EXECUTE powerdown

sudo pico /bin/upssched-cmd

#!/bin/sh

case $1 in
    onbatt)
        logger -t upssched-cmd "UPS running on battery. Battery is now discharging."
        ;;

    onpower)
        logger -t upssched-cmd "UPS running on mains. Battery is now charging."
        ;;

    mute_beeper)
        upscmd -u admin -p securepass apc@server.ip.address beeper.mute
        logger -t upssched-cmd "1 minute limit exceeded, muting beeper"
        ;;

    commbad_timer)
        logger -t upssched-cmd "UPS communication failure persists, initiating shutdown"
        /usr/sbin/upsmon -c fsd
        ;;

    commbad_shutdown)
        logger -t upssched-cmd "UPS communication failed! Shutting down!"
        /sbin/upsmon -c fsd
        ;;

    critical_shutdown)
        logger -t upssched-cmd "UPS battery is almost empty. Shutting down"
        /sbin/upsmon -c fsd
        ;;

    powerdown)
        logger -t upssched-cmd "Executing powerdown command"
        ;;

    *)
        logger -t upssched-cmd "Unrecognized command: $1"
        ;;
esac

Remember to make it executable

chmod +x /bin/upssched-cmd

We're done setting up the main computer ( the one connected to the UPS with the USB data cable) !

Setting up NUT client on network computers / workers

I have 3 Lenovo M53's and 1 Lenovo ThinkStation P510 as workers of my cluster. A 5 port switch is also plugged in and connects the Lenovo's to my main router.

🗄️ My Cluster information

I chose to shutdown these network computers/workers if the UPS is running on battery for 2 minutes and mains power did not return or the communication to the UPS has been lost for 2 minutes. This way I keep most of my UPS battery charge for my modem, router, switch and Ace Magician/Master.

sudo apt update
sudo apt install nut-client

sudo pico /etc/nut/nut.conf

MODE=netclient

sudo pico /etc/nut/upsmon.conf

RUN_AS_USER root

##################################################
# Make sure to enter the UPS name, the ip of the
# computer connected via USB cable and
# monitor user and pass configured in
# /etc/nut/upsd.users
##################################################
MONITOR apc@server.ip.address 1 monitor securepass master

MINSUPPLIES 1
SHUTDOWNCMD "/sbin/shutdown -h"
NOTIFYCMD /usr/sbin/upssched
POLLFREQ 2
POLLFREQALERT 1
HOSTSYNC 15
DEADTIME 15
POWERDOWNFLAG /etc/killpower

NOTIFYMSG ONLINE    "UPS %s on line power"
NOTIFYMSG ONBATT    "UPS %s on battery"
NOTIFYMSG LOWBATT   "UPS %s battery is low"
NOTIFYMSG FSD       "UPS %s: forced shutdown in progress"
NOTIFYMSG COMMOK    "Communications with UPS %s established"
NOTIFYMSG COMMBAD   "Communications with UPS %s lost"
NOTIFYMSG SHUTDOWN  "Auto logout and shutdown proceeding"
NOTIFYMSG REPLBATT  "UPS %s battery needs to be replaced"
NOTIFYMSG NOCOMM    "UPS %s is unavailable"
NOTIFYMSG NOPARENT  "upsmon parent process died - shutdown impossible"

NOTIFYFLAG ONLINE   SYSLOG+WALL+EXEC
NOTIFYFLAG ONBATT   SYSLOG+WALL+EXEC
NOTIFYFLAG LOWBATT  SYSLOG+WALL+EXEC
NOTIFYFLAG FSD      SYSLOG+WALL+EXEC
NOTIFYFLAG COMMOK   SYSLOG+WALL+EXEC
NOTIFYFLAG COMMBAD  SYSLOG+WALL+EXEC
NOTIFYFLAG SHUTDOWN SYSLOG+WALL+EXEC
NOTIFYFLAG REPLBATT SYSLOG+WALL
NOTIFYFLAG NOCOMM   SYSLOG+WALL+EXEC
NOTIFYFLAG NOPARENT SYSLOG+WALL

RBWARNTIME 43200

NOCOMMWARNTIME 600

FINALDELAY 5

sudo pico /etc/nut/upssched.conf

CMDSCRIPT /bin/upssched-cmd
PIPEFN /etc/nut/upssched.pipe
LOCKFN /etc/nut/upssched.lock

# Starts a timer when the UPS switches to battery power
AT ONBATT * START-TIMER shutdown_timer 120

# Cancels the shutdown timer when power is restored
AT ONLINE * CANCEL-TIMER shutdown_timer

#############################################
# These 2 actions are here just in case your
# UPS battery is faulty and discharges very fast

# Shutdown if battery is critical
AT LOWBATT * START-TIMER critical_shutdown 20

# Cancel timer if power's restored
AT ONLINE * CANCEL-TIMER critical_shutdown
#############################################

# Starts a timer on communication failure
AT COMMBAD * START-TIMER commbad_timer 120
#AT COMMBAD * EXECUTE commbad_timer

# Cancels the communication failure timer when communication is restored
AT COMMOK * CANCEL-TIMER commbad_timer

# Executes shutdown on persistent communication failure
AT NOCOMM * EXECUTE commbad_shutdown

# Executes powerdown on system shutdown
AT SHUTDOWN * EXECUTE powerdown

sudo pico /bin/upssched-cmd

#!/bin/sh

case $1 in
    shutdown_timer)
        logger -t upssched-cmd "UPS is on battery. Shutting down in 2 minutes if power is not restored!"
        /sbin/upsmon -c fsd
        ;;

    critical_shutdown)
        logger -t upssched-cmd "Triggering shutdown in 20 seconds because battery is critical!"
        /sbin/upsmon -c fsd
        ;;

    commbad_timer)
        logger -t upssched-cmd "UPS communication failure persists, initiating shutdown"
        /usr/sbin/upsmon -c fsd
        ;;
    commbad_shutdown)
        logger -t upssched-cmd "UPS communication failed! Shutting down to be safe!"
        /sbin/upsmon -c fsd
        ;;

    powerdown)
        logger -t upssched-cmd "Executing powerdown command"
        ;;

    *)
        logger -t upssched-cmd "Unrecognized command: $1"
        ;;
esac

What happens when a power outage occurs

My UPS battery can keep my cluster online with all computers, modem, switch and router turned on for about 15 minutes. If I shutdown the 3 Lenovo M53's and the P510 after 2 minutes, the battery can hold my Ace Magician Tiny, modem and router for about 35 minutes.

What NUT client does on the computer connected to the UPS with the data cable

Power goes down. What NUT server does:

starts a timer for 60 seconds to mute the buzzer - this means that the UPS will buzz for only 1 minute when power goes down. Trust me, you don't want to hear that buzzer for 35 minutes straight.
all NUT clients are notified that the UPS is running on battery (including the Ace Magician Tiny that runs the server)
initiates a shutdown only if the UPS battery reaches 10%
the remaining 10% are used only by my modem and router after this point in hope that mains power returns.

What NUT client does on the other connected devices

receives the notification that the UPS is running on battery
waits for 2 minutes. If the UPS is still on battery power it will initiate a shutdown on the Lenovo's. As I mentioned earlier, I chose to run the 4 worker nodes ( Lenovo ) for only 2 minutes to conserve the UPS battery.

Here's a diagram on how my cluster is connected and behaves in case of a power outage.

Be sure to click the image that coresponds to your light/dark preference.

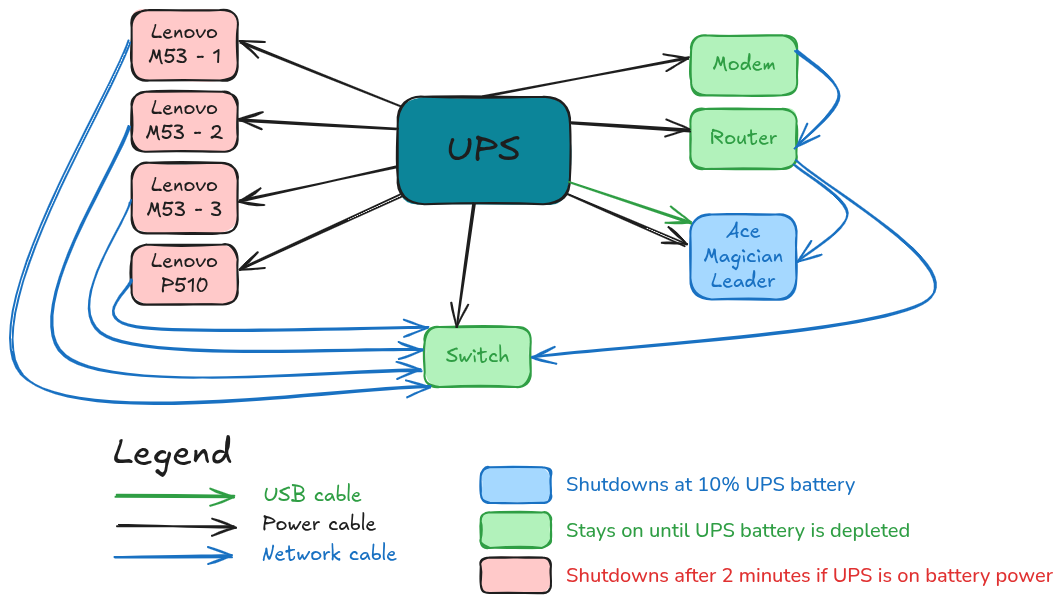

Cluster diagram [light]

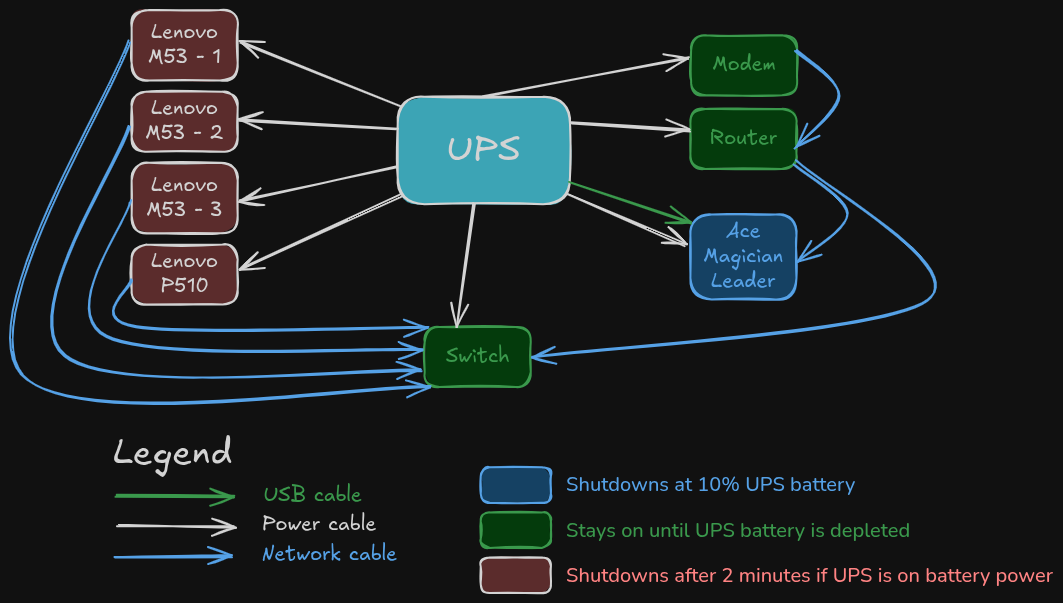

Cluster diagram [dark]

I've also created a GitHub repo containing all these files.

Nut Config on GitHub/SavaAlexandruStefan

It may be easier for you to just clone the repo and copy the files to /etc/nut/
